SMY-650 Fully Automatic Concrete Forming Machine Technical Parameters：

Rated pressure: 600T

Production capacity: 1.5 pieces/minute

Forming method: hydraulic forming

Total power: 30KW (50KW for high speed type)

Product specifications: 1000mm*200-500mm*100-250mm

Dimensions: 4000*2700*2650mm

Total weight: 15800KG

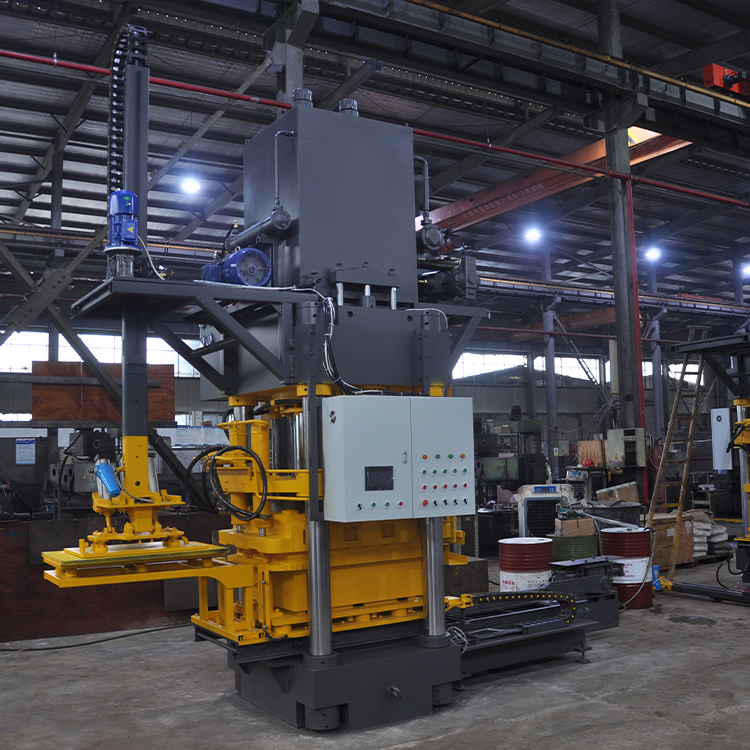

SMY-650 Fully Automatic Concrete Forming Machine Introduction:

The SMY-650 series concrete molding machine is the new generation of multi-function molding machine that combines curb stone and terrazzo large slabs developed by our company. The production types include: curb stone, terrazzo, PC and other products, and a variety of products are on one equipment. Freely switch production, truly achieve multi-purpose one machine, and solve the problems of single host and waste of production capacity.

The curb stone process uses high-pressure filter forming process, which can comprehensively improve product quality and strength while ensuring rapid production; the curb stone products produced have high strength and surface machining ability, as well as It has multiple functions such as strength, decoration and safety. The products can be widely used in various paved pavement surfaces such as roads, parks, and squares.

The SMY-650 host can be connected to a variety of modular components, and can add module components according to actual production needs, such as low-noise oil pumps, CNC metering weighers, and multi-layer automatic palletizing systems to meet various actual production needs and facilitate Later, components will be added according to actual needs.

SMY-650 adopts an automated control system, controls the entire machine's work through a computer, is equipped with a variety of sensors to ensure automated production and has the ability to reduce misoperation of various personnel and reduce daily maintenance consumption. Partially precision machining of the main cylinder, base, upper box and other host frames is greatly extended, reducing the possibility of failures during the use of the host, and effectively ensuring the reliability of curb stone production.
